12 Core Single Mode GYXTC8S Outdoor Fiber Optical Cable for Long Haul Communication

Description:

GYXTC8S fiber optic cable is a figure 8 structure cable suitable for installation in aerial environment for long haul communications. This optical cable is 2cores to 24 cores types available.

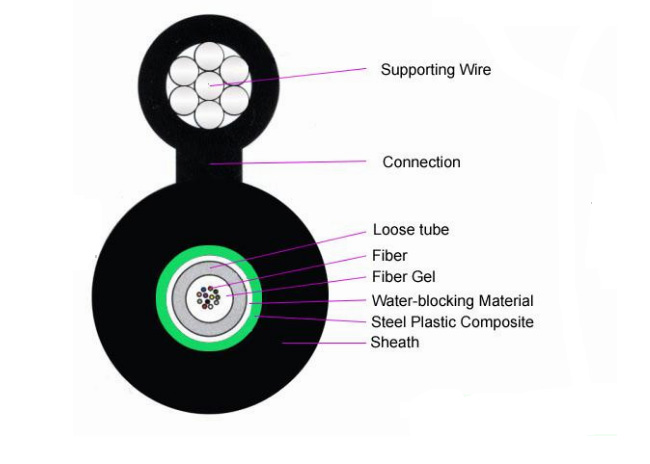

GYXTC8S features the centrally situated loose tube with good excess length and minimize the influence of lateral crush. The water resistant tape provides water tight property. Corrugated steel tape armor and the PE outer sheath of GYXTC8S fiber optic cable provide crush resistance and gun shot resistance. The cross section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation for this GYXTC8S fiber cable.

Features

--High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cast

--Good mechanical and temperature performance

--High strength loose tube that is hydrolysis resistant

--Special tube filling compound ensure a critical protection of fiber

Specification

Fiber Count	Tubes	Fillers	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
2~6	1	4	6.8*9.2*1.8	214	600/1500	300/1000	10D/20D
8~12	2	3	6.8*9.2*1.8	214	600/1500	300/1000	10D/20D
14~18	3	2	6.8*9.2* 1.8	214	600/1500	300/1000	10D/20D
20~24	4	1	6.8*9.2* 1.8	214	600/1500	300/1000	10D/20D
26~30	5	0	6.8*9.2* 1.8	214	600/1500	300/1000	10D/20D

loose tube fiber optic cable

armoured fiber optic cable

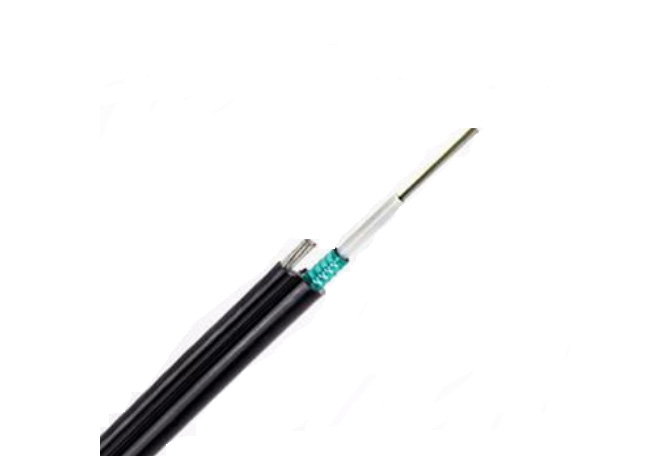

12 Core Single Mode GYXTC8S Outdoor Fiber Optical Cable for Long Haul Communication Images
